Brick Reinforcement Mesh (Brickforce)
Galvanised steel mesh laid in mortar joints to strengthen brick and block walls. Available as strips and rolls in widths from 65mm to 225mm, packed for export. Also known as brickforce or brick mesh, supplied to contractors, distributors and building material suppliers worldwide.
Two Ways to Supply Brick Reinforcement Mesh
Choose pre-cut strips for fast, simple laying, or continuous rolls for long wall runs. Specifications, dimensions and packaging can be supplied according to your project requirements.
Brick Mesh Strips
Pre-cut 1220mm strips with wing profile, supplied in boxes of 500 pieces.
- Widths: 65 / 100 / 150 / 200mm
- Length: 1220mm
- Packing: 500 pcs per box
- Suitable for bulk and export orders

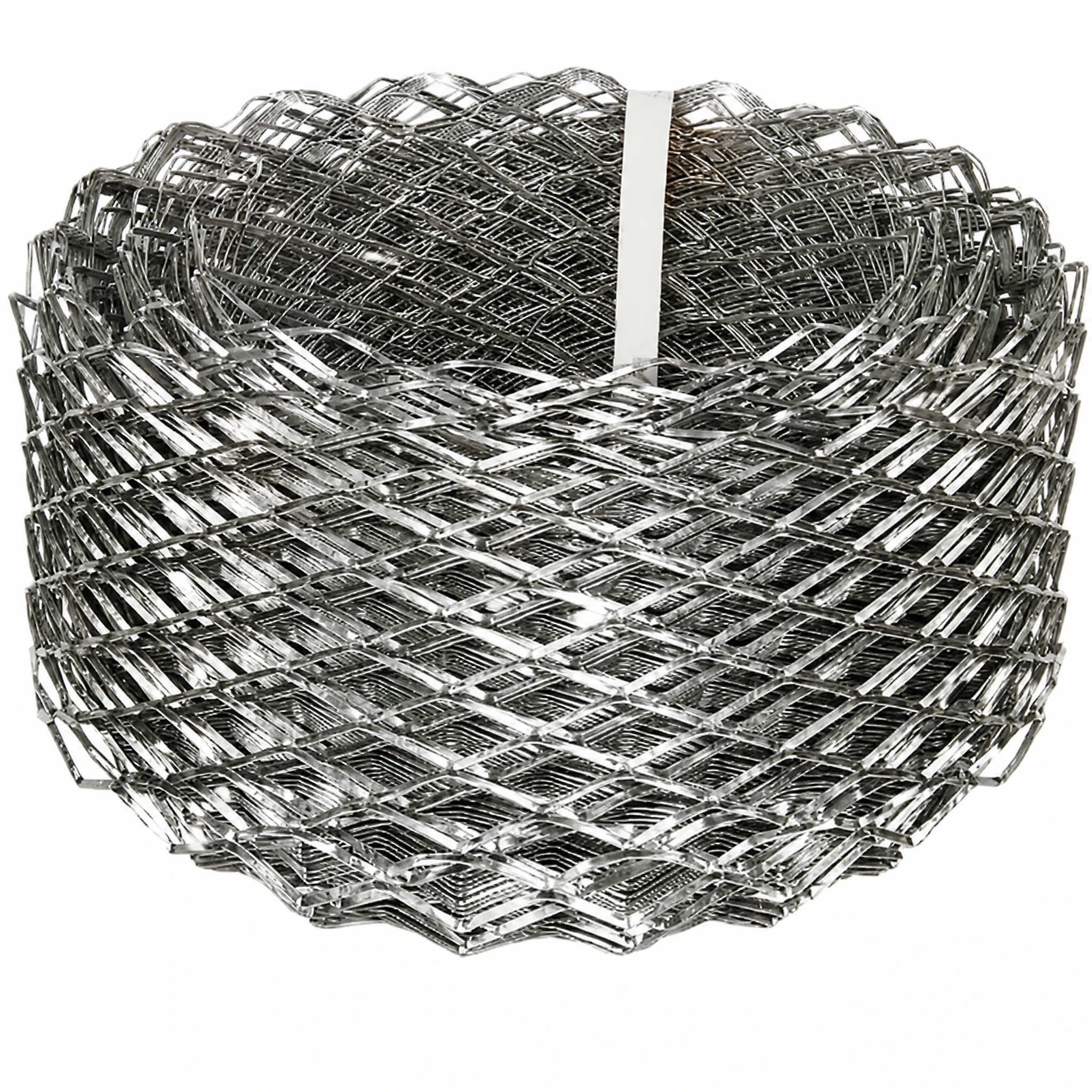

Brick Reinforcement Mesh Rolls
Continuous 100m galvanised steel rolls, matched to common wall thicknesses.
- Widths: 65 / 115 / 175 / 225mm
- Length: 100m per roll
- For 100 / 150 / 200 / 250mm walls
- Consistent mesh structure
Brick Mesh Specifications
Standard sizes are listed below. Need a different width, length or packing? Send us your requirement and we will quote accordingly.
| Width | Length | Wing Width | Wing Length | Packing |
|---|---|---|---|---|
| 65mm | 1220mm | 38mm | 16mm | 500 pcs/box |
| 100mm | 1220mm | 38mm | 16mm | 500 pcs/box |
| 150mm | 1220mm | 38mm | 16mm | 500 pcs/box |
| 200mm | 1220mm | 38mm | 16mm | 500 pcs/box |
| Item | Material | Width × Length | Recommended Wall |
|---|---|---|---|
| ML-01 | Galvanised steel | 65mm × 100m | 100mm wall |
| ML-02 | Galvanised steel | 115mm × 100m | 150mm wall |
| ML-03 | Galvanised steel | 175mm × 100m | 200mm wall |
| ML-04 | Galvanised steel | 225mm × 100m | 250mm wall |
Wire diameter, zinc coating and packing details are available on request. Contact us for a full specification sheet.
Why Choose AlliedMesh Brick Mesh
We combine our own manufacturing capability in China with more than 20 years of international trade and export experience.
Stronger, More Stable Walls
Reinforcement laid across brick and block courses helps support more stable masonry construction.
Consistent Quality
Uniform mesh structure and galvanised steel construction, with quality inspection through production.
Flexible Supply
Multiple widths and lengths, custom specifications and export packing for distributors and contractors.

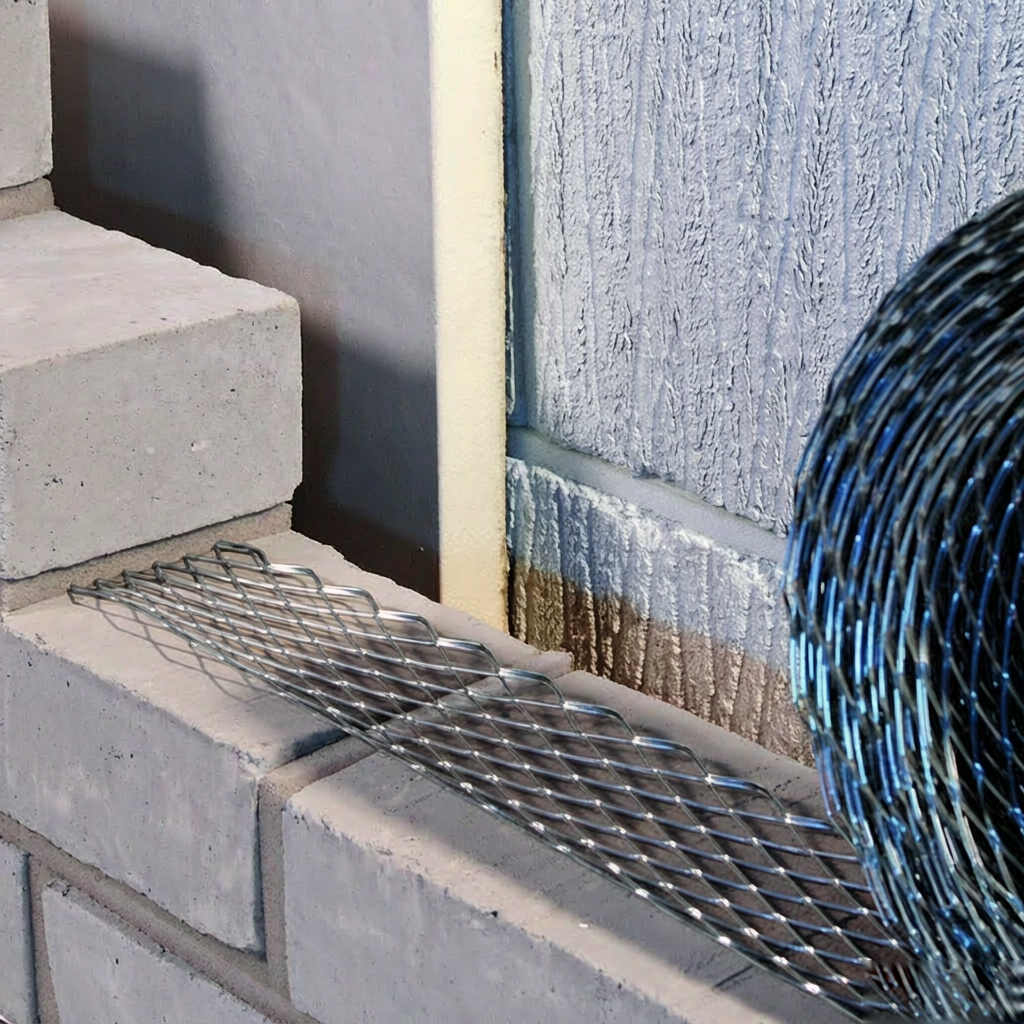

Brick Mesh Applications
Brick reinforcement mesh is used wherever additional reinforcement is needed within masonry construction.
Brick Reinforcement Mesh FAQ
What is brickforce?
Brickforce is a common name, especially in Australia and New Zealand, for steel reinforcement mesh laid in the mortar joints of brick and block walls. It is also called brick mesh or brick reinforcement mesh.
Which width should I choose for my wall?
Choose the width to suit the wall thickness. Our roll sizes are matched as follows: 65mm for 100mm walls, 115mm for 150mm walls, 175mm for 200mm walls and 225mm for 250mm walls. Contact us if your project needs a different size.
Is the mesh galvanised?
Yes. Our brick reinforcement mesh is made from galvanised steel. Ask us for zinc coating and wire diameter details for your project.
What packaging do you offer?
Strip type is packed 500 pieces per box. Roll type is supplied in 100m rolls. Packing can be arranged for bulk and container shipments to suit your order.
Can you supply custom sizes and samples?
Specifications, dimensions and packaging can be supplied according to project requirements. Contact us with your width, length and quantity to discuss custom sizes and samples.
Need Brick Mesh for Your Project?
Tell us the width, length and quantity you need, and we will send you a quotation with specifications and packing details.
