Fiberglass Mesh

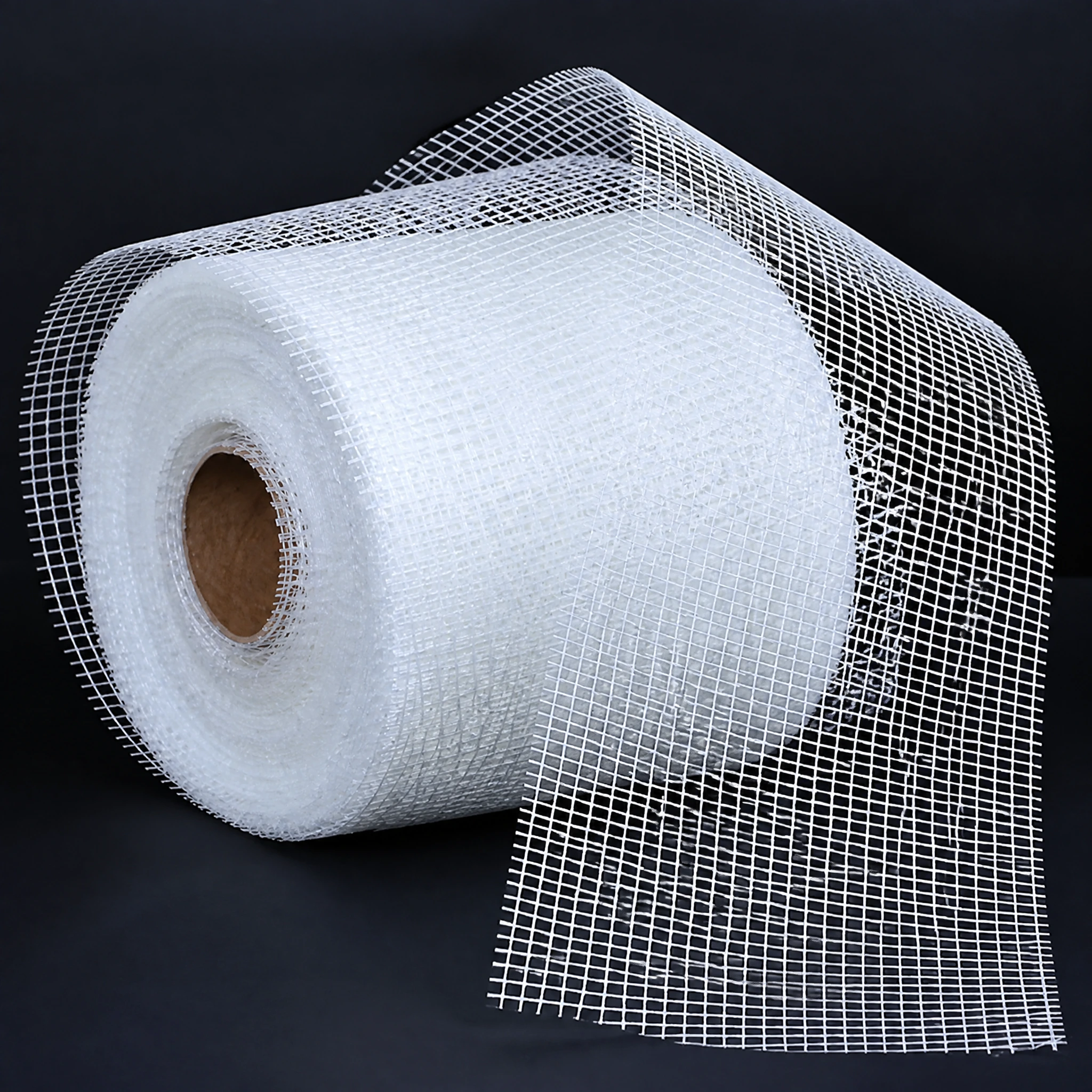

Alkali-Resistant Fiberglass Mesh is a lightweight and flexible reinforcement mesh made from woven fiberglass yarn and coated with an alkali-resistant treatment. It provides high tensile strength, dimensional stability and excellent resistance to alkaline environments, making it suitable for plastering, rendering, EIFS/ETICS, waterproofing and other cement-based building systems.
- Alkali-resistant coating helps protect the fiberglass mesh in cementitious, plaster and mortar environments, supporting long-term reinforcement performance.
- Strong reinforcement in both warp and weft directions helps distribute stresses and reduce the risk of cracking in reinforced surfaces.
- Lightweight construction makes the mesh easy to cut, handle and install on different surface shapes.
- Stable woven structure helps maintain consistent mesh geometry during installation and temperature or moisture variations.
- Suitable for wall reinforcement, plastering, rendering, EIFS/ETICS, waterproofing, crack isolation, concrete reinforcement and tile-related applications.
Fiberglass Mesh for Wall Reinforcement
Fiberglass Mesh is manufactured from woven fiberglass yarn and treated with an alkali-resistant coating to provide reinforcement in plaster, render, mortar and other cement-based systems. Its open mesh structure allows plaster and coating materials to penetrate the mesh, creating an effective mechanical reinforcement layer.

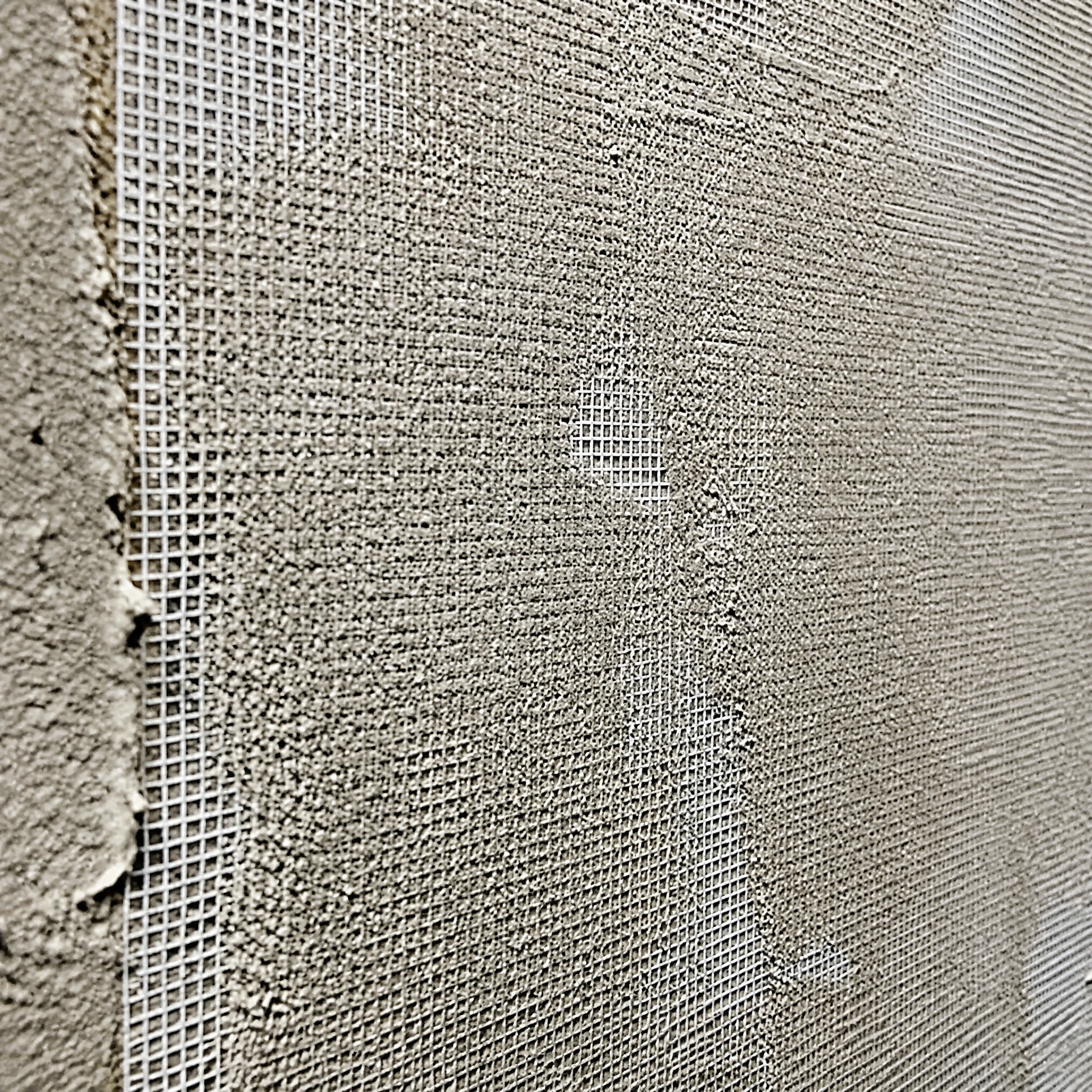

The flexible and lightweight construction makes Fiberglass Mesh easy to cut, transport and install. When embedded into plaster or render, it helps distribute surface stresses, improve crack resistance and enhance the overall stability of the reinforced layer.
AlliedMesh can supply Fiberglass Mesh in different mesh openings, weights, widths, roll lengths and coating specifications according to application requirements. Custom specifications and packaging are also available for bulk orders.
Fiberglass Mesh Applications
Fiberglass Mesh is widely used for wall and plaster reinforcement, exterior insulation and finishing systems (EIFS/ETICS), rendering, waterproofing membranes, crack isolation and cement-based applications. It can be used on interior and exterior walls, façades, concrete surfaces and other areas where lightweight reinforcement and crack resistance are required.
Why Choose AlliedMesh Fiberglass Mesh
AlliedMesh supplies fiberglass mesh and wire mesh products to international customers, supporting contractors, distributors, building material suppliers and construction projects. Fiberglass Mesh can be supplied in different mesh sizes, weights, widths, roll lengths and coating specifications to meet different application requirements. We focus on consistent product quality, reliable specifications and stable supply for bulk orders.
Need Fiberglass Mesh for Your Project?
Contact AlliedMesh for product specifications, quotations, samples and bulk supply.
REQUEST A QUOTE →Detailed Information
| Item | Product Information |
|---|---|
| Product | Alkali-Resistant Fiberglass Mesh is a woven reinforcement material designed to improve the strength, stability and crack resistance of cement-based and polymer-modified building systems. |
| Construction | Manufactured from fiberglass yarn and treated with an alkali-resistant coating for use in cementitious and other alkaline construction environments. |
| Reinforcement Function | Embedded into fresh basecoat, plaster, mortar or waterproofing layers to distribute stresses and help reduce cracking caused by shrinkage, temperature changes, substrate movement and localized stresses. |
| Common Weight | 110 g/m², 120 g/m², 145 g/m², 160 g/m², 200 g/m² and other grades. |
| Facade Applications | 160 g/m² fiberglass mesh is commonly used for facade reinforcement and external insulation systems. |
| Mesh Openings | Common options include 4 × 4 mm, 5 × 5 mm, 10 × 10 mm and other customized openings. |
| Customization | Width, roll length, mesh opening, weight, color, packaging and other specifications can be customized according to project requirements. |
Typical Specifications
| Specification | Typical Options |
|---|---|
| Material | Fiberglass / E-Glass / C-Glass Yarn |
| Coating | Alkali-Resistant Coating |
| Weight | 110–200 g/m² and other grades available |
| Mesh Opening | 3 × 3 mm / 4 × 4 mm / 5 × 5 mm / 10 × 10 mm / Customized |
| Width | 1 m / 1.1 m / Customized |
| Roll Length | 50 m / 100 m / Customized |
| Color | White / Blue / Green / Customized |
| Weave | Leno / Other suitable woven structures |
| Tensile Strength | According to mesh weight, opening, yarn, coating and applicable requirements. |
| Packaging | Roll / Carton / Pallet / Customized |
Fiberglass Mesh Applications
| Application | Typical Use |
|---|---|
| Wall Reinforcement | Reinforcement for interior and exterior plaster, render and skim-coat systems to help reduce surface cracking. |
| EIFS / ETICS | Reinforcement layer within external thermal insulation and facade systems. |
| Plastering & Rendering | Embedded into cement-based or polymer-modified mortar to improve surface stability and crack resistance. |
| Waterproofing Systems | Used in suitable waterproofing and crack-isolation systems, particularly around cracks, corners, coves and transitions. |
| Concrete & Masonry | Used as reinforcement in selected cementitious repair and strengthening systems. |
| Tile & Flooring | Used in selected tile, mortar, underlayment and repair applications according to system requirements. |
| Roof & Waterproofing | Reinforcement for selected roof waterproofing and protective systems requiring a flexible, alkali-resistant reinforcement layer. |
Installation Considerations
The substrate should generally be sound, clean, dry, stable and free from substances that could interfere with adhesion. Fiberglass mesh should normally be embedded into the appropriate fresh mortar, basecoat, plaster or waterproofing layer rather than simply placed on the surface. Where overlapping is required, the exact overlap should follow the applicable system or project specification.
