Self-Furring Dimple Lath
1/4" Self-Furring Expanded Metal Lath for Stucco & Plaster

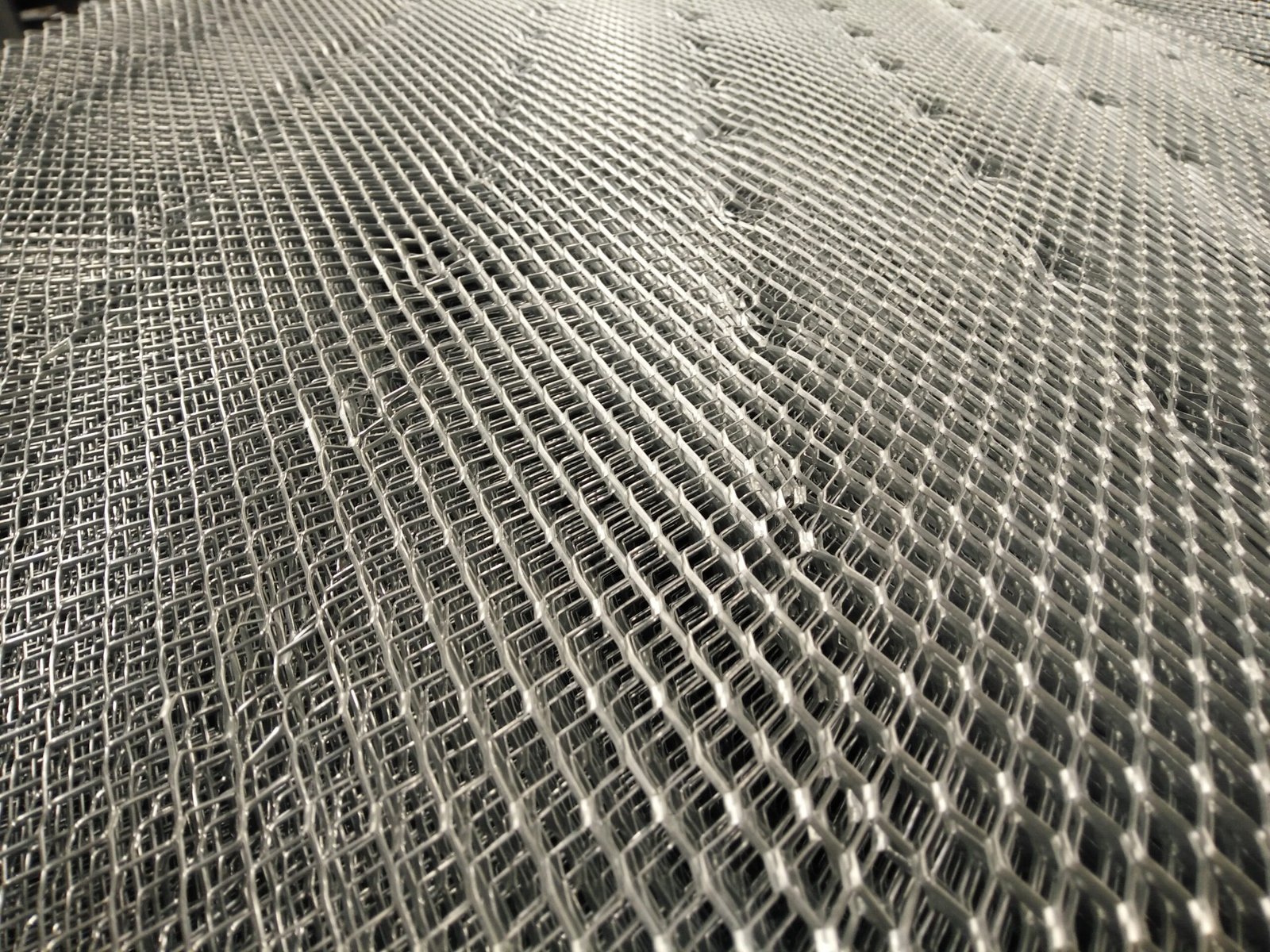

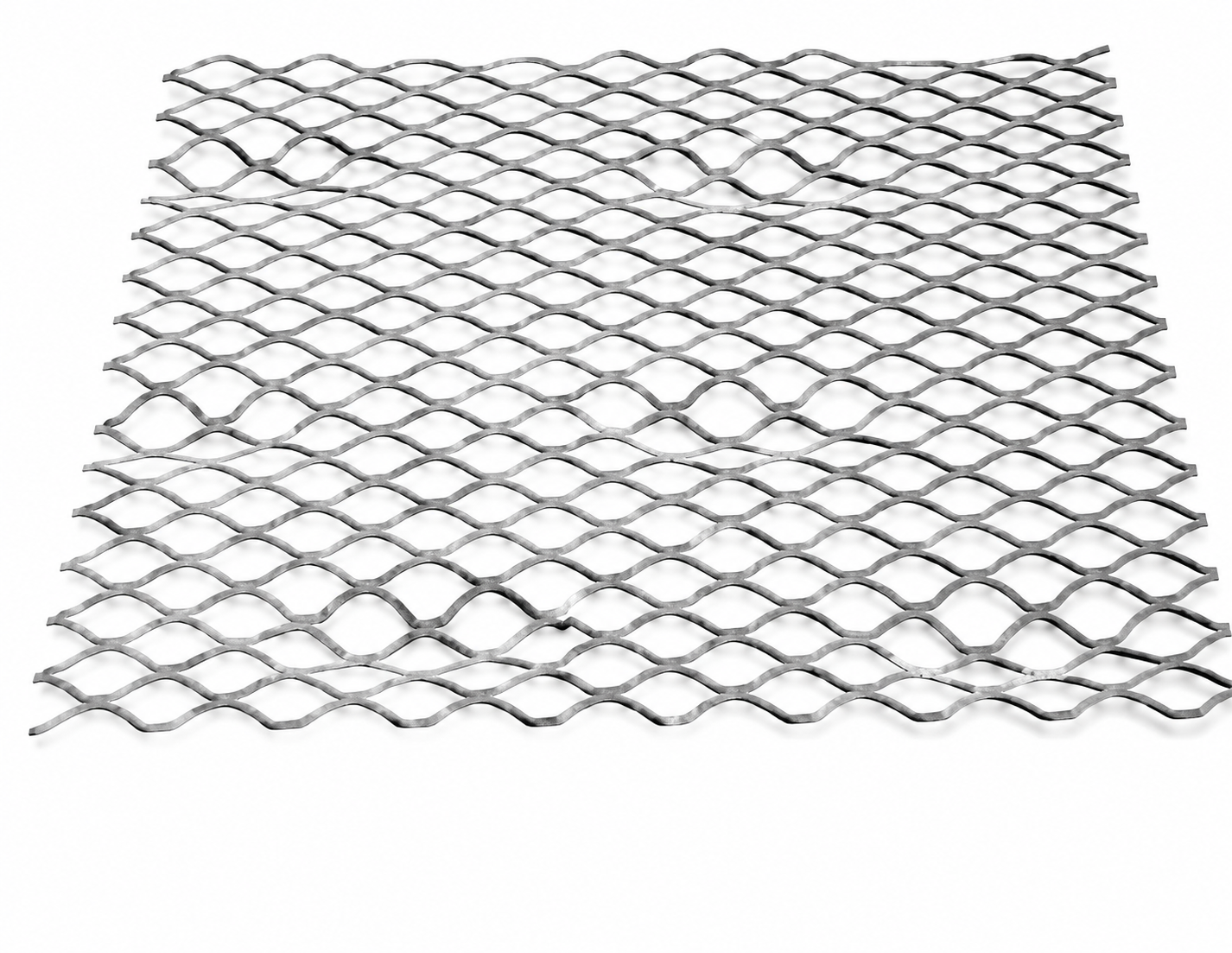

AlliedMesh Self-Furring Dimple Lath is manufactured from galvanized steel sheet and formed into an expanded metal pattern with raised 1/4" dimples. This raised profile creates a consistent space between the lath and the supporting surface, helping stucco and plaster materials develop a secure mechanical key around the metal mesh.
Designed for distributors, contractors and building-material suppliers, AlliedMesh Self-Furring Dimple Lath is available in 1.75 lb., 2.5 lb. and 3.4 lb. options. Manufacturing, quality inspection, packing and export preparation are handled directly by our production team in China.
Factory Direct Supply
Manufactured and inspected by AlliedMesh in China for direct export supply.
1/4" Self-Furring Profile
Raised dimples create a defined space between the metal lath and the supporting surface.
Expanded Metal Structure
Open diamond mesh provides a reliable base for stucco, plaster and other cement-based finishes.
Three Weight Options
Available in 1.75 lb., 2.5 lb. and 3.4 lb. options for different project requirements.
Where Self-Furring Dimple Lath Is Used
The raised profile makes Self-Furring Dimple Lath a practical reinforcement base for finishing systems installed over suitable sheathing, masonry and other solid substrates.
Self-Furring Dimple Lath Specifications
Source Self-Furring Dimple Lath Direct from the Factory
Talk directly with AlliedMesh for specifications, pricing, production details and export orders.
From Production to Shipment
Every order goes through a controlled process from production to final loading. We focus on product quality, careful handling and secure packaging at every stage.
Manufacturing
Metal mesh and building products are manufactured using our production equipment and established manufacturing processes.
Quality Inspection
Finished products are checked for dimensions, mesh pattern, surface condition and overall product quality before packing.
Professional Packing
Products are carefully packed and protected according to the product type and shipping requirements.
Container Loading
Packed orders are carefully loaded into containers and prepared for safe international transportation.
Self-Furring Dimple Lath FAQ
Quick answers for importers, distributors and contractors.
What does "self-furring" mean?
Self-furring lath has dimples pressed into the sheet that hold it about 1/4" (6 mm) away from the wall. This lets stucco or plaster flow behind the lath and fully embed it, without separate furring strips.
What weights and sizes are available?
Standard sheets are 27" × 96" in 2.5 lb/yd² and 3.4 lb/yd², galvanized for exterior stucco. Other sizes and weights can be produced for OEM orders.
Where is dimple lath used?
It is used over sheathing, concrete block and masonry for three-coat stucco, cement plaster and adhered stone veneer.
Can I order a sample?
Yes. Samples are available from one piece. Bulk orders typically ship in 7–15 days from Tianjin Xingang Port.
Often Ordered Together
Combine products in one container to save on freight.
Self-Furring V-Groove Lath
Flat Diamond Metal Lath
Paper-Backed Lath
Stucco AccessoriesNeed Self-Furring Dimple Lath for Your Project?
Send us the size, quantity and destination port. We usually reply within 1 hour with price, lead time and packing details.
