Crimped Wire Mesh

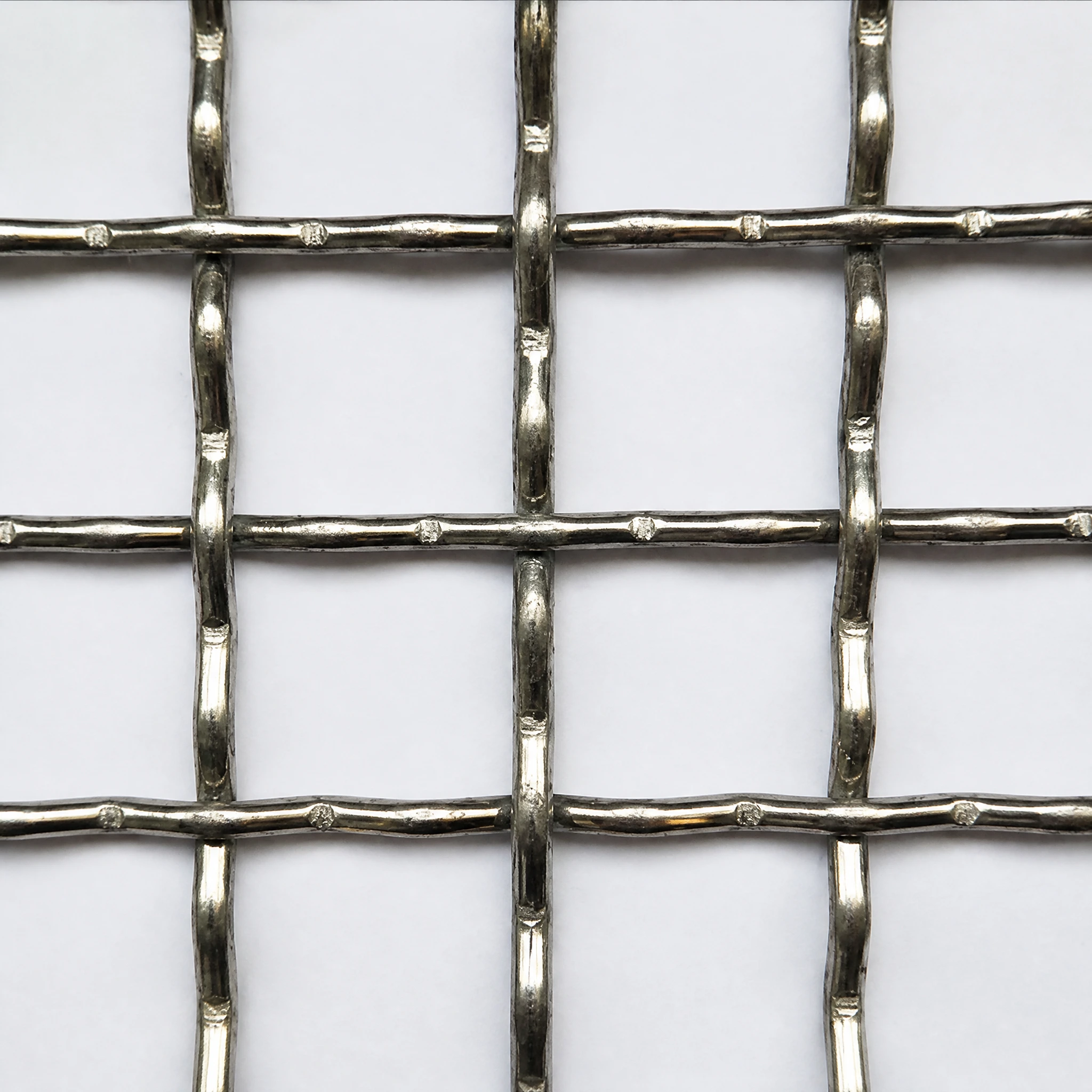

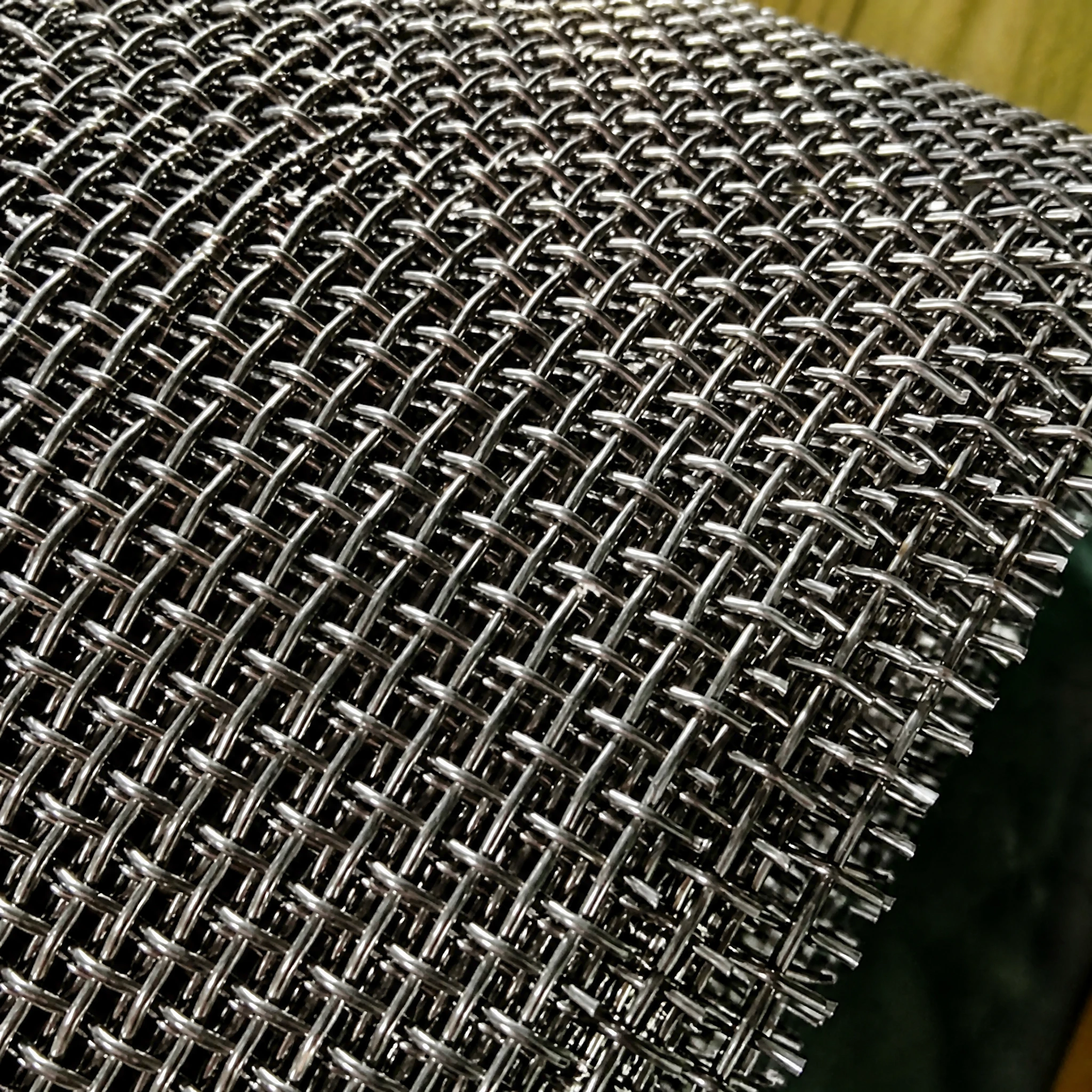

Crimped Wire Mesh is a strong and dimensionally stable woven wire mesh manufactured by pre-crimping the wires before weaving. This process creates accurate and consistent mesh openings while securely locking the wires at the intersections. Available in galvanized iron wire and stainless steel wire, it is widely used for screening, sieving, filtration, architectural applications, and industrial separation.

Key Features

Pre-crimped wires maintain precise and uniform mesh openings, making the mesh suitable for applications where screening accuracy is important
The crimping process locks the wires firmly together, providing excellent structural stability and resistance to deformation
Heavy-duty wire construction provides good impact resistance and wear resistance, making it suitable for demanding screening applications
Available in galvanized iron wire and stainless steel wire, with different wire diameters, mesh openings, and panel or roll sizes
Suitable for mining screens, vibrating screens, sieving, screening, partitions, windows, architectural decoration, food processing, and industrial applications

REQUEST A QUOTE →

Detailed Information

Crimped Wire Mesh is a type of woven wire mesh manufactured using a pre-crimping process. Before weaving, the wires are precisely formed using specialized crimping equipment to create controlled bends along the wire. The pre-crimped wires are then woven together to form the finished mesh.

Unlike conventional plain woven wire mesh, the pre-crimping process allows the wires to lock together at their intersections. This provides greater dimensional stability and helps maintain consistent mesh openings during use.

The crimping pattern can be selected according to the wire diameter, mesh opening, and application requirements. Common configurations include Plain Crimped, Intermediate Crimped, Lock Crimped, and Flat Top Crimped.

For applications requiring large openings with relatively fine wires, additional crimps between intersections can improve mesh stability and help prevent movement of the wires. This makes crimped mesh particularly suitable for vibrating screens and sizing applications.

Crimped Wire Mesh can be manufactured from galvanized iron wire, stainless steel wire, and other suitable metal wires. Stainless steel grades such as 201, 304, and 316 can be selected according to corrosion resistance and operating conditions.

Different wire diameters, mesh openings, widths, lengths, and roll or panel sizes can be supplied according to project requirements.

Crimped Wire Mesh Types

Plain Crimped

Plain crimped mesh uses a straightforward over-and-under weaving structure. It is suitable for general screening and applications requiring a stable woven structure.

Intermediate Crimped

Also known as Intercrimped Wire Mesh, this type uses additional crimps between intersections to improve stability, particularly when relatively fine wires are used with larger mesh openings.

Lock Crimped

Lock crimped mesh uses tightly formed intersections to lock the wires in position. It provides high dimensional accuracy, rigid construction, and stable mesh openings, making it suitable for precision screening and heavy-duty applications.

Flat Top Crimped

Flat Top Crimped Wire Mesh has a relatively smooth surface on one side, which can facilitate material flow across the screen surface. It is also used for architectural and construction applications where a flatter appearance is preferred.

Materials

Galvanized Iron Wire

Provides an economical solution for general screening and industrial applications where moderate corrosion resistance is required.

Stainless Steel Wire

Stainless steel provides enhanced corrosion resistance, temperature resistance, and durability. Common grades include:

SS 201
SS 304
SS 316

For more demanding environments, 304 and 316 stainless steel are generally preferred.

Applications

Mining & Quarrying

Used for vibrating screens, sizing screens, aggregate screening, and mineral separation where strength and wear resistance are important.

Screening & Sieving

Suitable for screening and separating materials by particle size in various industrial processes.

Food Processing

Stainless steel crimped mesh can be used for flour sieving, food screening, roasting, drying, and processing equipment.

Architectural Applications

Used for partitions, decorative panels, infill panels, windows, facades, and interior architectural elements.

Construction

Suitable for protective screens, partitions, ventilation panels, and other construction-related applications.

Industrial Processing

Widely used in chemical, pharmaceutical, petroleum, metallurgy, machinery, and general manufacturing applications.

Screening Equipment

Its stable structure and accurate openings make it particularly suitable for vibrating screens and other screening equipment where consistent sizing is required.

Crimped Wire Mesh – Galvanized Iron Wire

Mesh Opening	SWG	Wire Diameter	Aperture	Standard Size
10.7 mm	14	2.0 mm	10 mm	4 ft Roll
1"	10	3.0 mm	25 mm	4 ft Roll
1"	10	3.0 mm	25 mm	4 ft × 8 ft
1.5"	10	3.0 mm	40 mm	4 ft Roll
1/2"	10	3.0 mm	12.7 mm	4 ft × 8 ft
1/2"	10	3.0 mm	12.7 mm	4 ft Roll
1/2"	14	2.0 mm	12.7 mm	4 ft Roll
2"	6	5.0 mm	50 mm	4 ft × 8 ft
2"	4	6.0 mm	50 mm	4 ft × 8 ft
2"	8	4.0 mm	50 mm	4 ft × 8 ft
2"	8	4.0 mm	50 mm	4 ft × 8 ft
3/4"	10	3.0 mm	20 mm	4 ft Roll
3/4"	14	2.0 mm	20 mm	4 ft Roll
5/8"	14	2.0 mm	15 mm	4 ft Roll

Crimped Wire Mesh – Stainless Steel Wire

Mesh Opening	SWG	Wire Diameter	Aperture	Standard Size
9 mm	10	3.0 mm	9 mm	4 ft Roll
10 mm	14	2.0 mm	10 mm	4 ft Roll
10.7 mm	14	2.0 mm	10 mm	4 ft Roll
1"	10	3.0 mm	25 mm	4 ft × 8 ft
1"	10	3.0 mm	25 mm	4 ft Roll
1.5"	10	3.0 mm	40 mm	4 ft × 8 ft
2"	6	5.0 mm	50 mm	4 ft × 8 ft
1/2"	10	3.0 mm	12.7 mm	4 ft × 8 ft
1/2"	10	3.0 mm	12.7 mm	4 ft Roll
1/2"	14	2.0 mm	12.7 mm	4 ft Roll
1/2"	16	1.5 mm	12.7 mm	4 ft Roll
1/2"	16	1.5 mm	12.7 mm	30" Roll
3/4"	10	3.0 mm	20 mm	4 ft × 8 ft
3/4"	10	3.0 mm	20 mm	4 ft Roll
3/4"	14	2.0 mm	20 mm	4 ft Roll
5/8"	14	2.0 mm	15 mm	4 ft Roll
