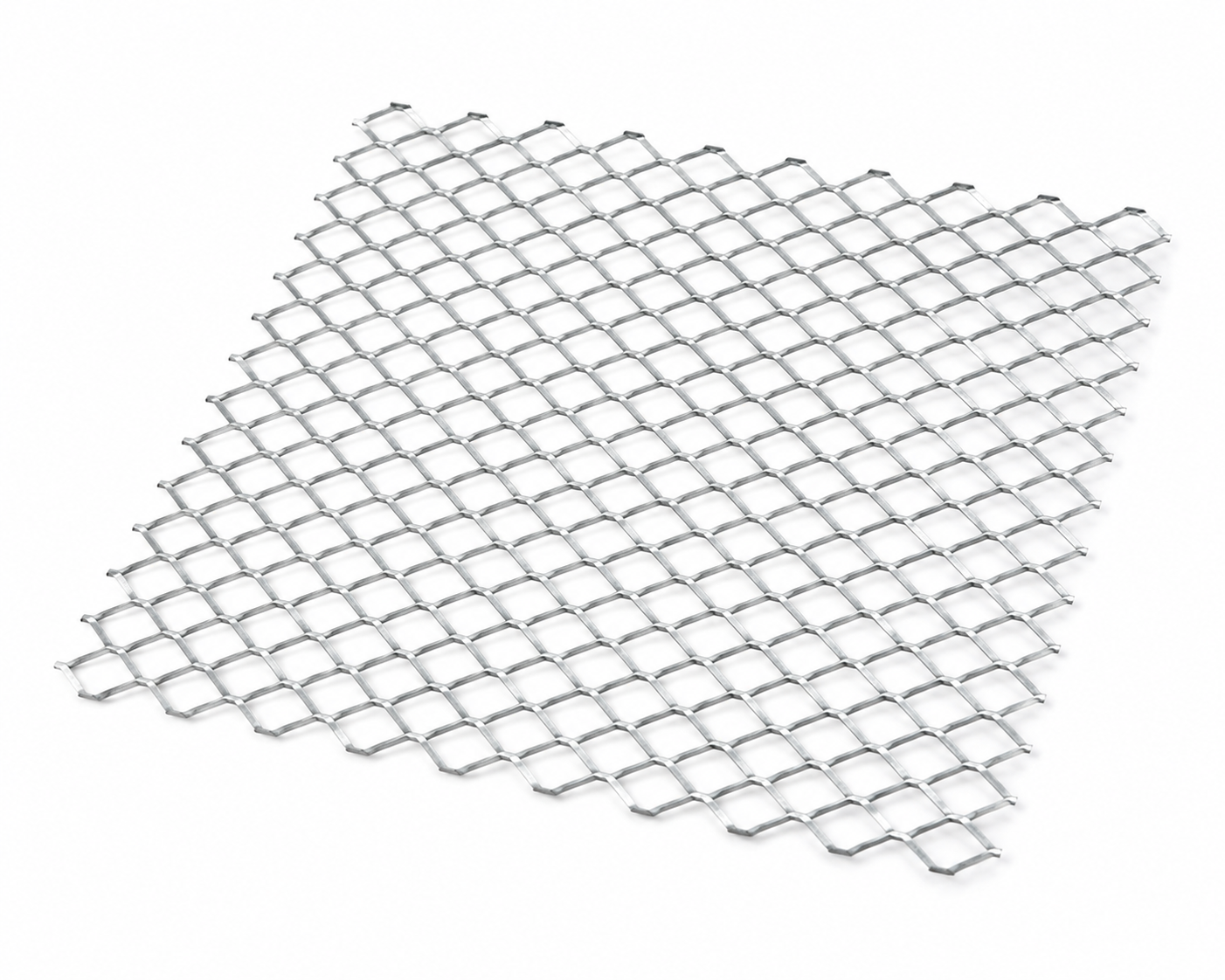

Flat Diamond Metal Lath
Galvanized Expanded Metal Lath for Stucco & Plaster
AlliedMesh Diamond Metal Lath is manufactured from galvanized steel sheet and expanded into a uniform diamond metal at our manufacturing facility in China. The open pattern provides a reliable reinforcing base for stucco, plaster, stone veneer and other cement-based finishing systems.
As a direct manufacturer, we supply Diamond metal Lath in 1.75 lb., 2.5 lb. and 3.4 lb. options for distributors, contractors and building-material suppliers, with production, quality inspection and export packing handled in-house.
Factory Direct
Manufactured and inspected at our own production facility in China.
Strong Mesh Structure
Uniform expanded diamond openings provide effective mechanical keying for finishing materials.
Galvanized Steel
G60 galvanized steel provides added protection against corrosion.
Three Weight Options
Available in 1.75 lb., 2.5 lb. and 3.4 lb. options for different project requirements.

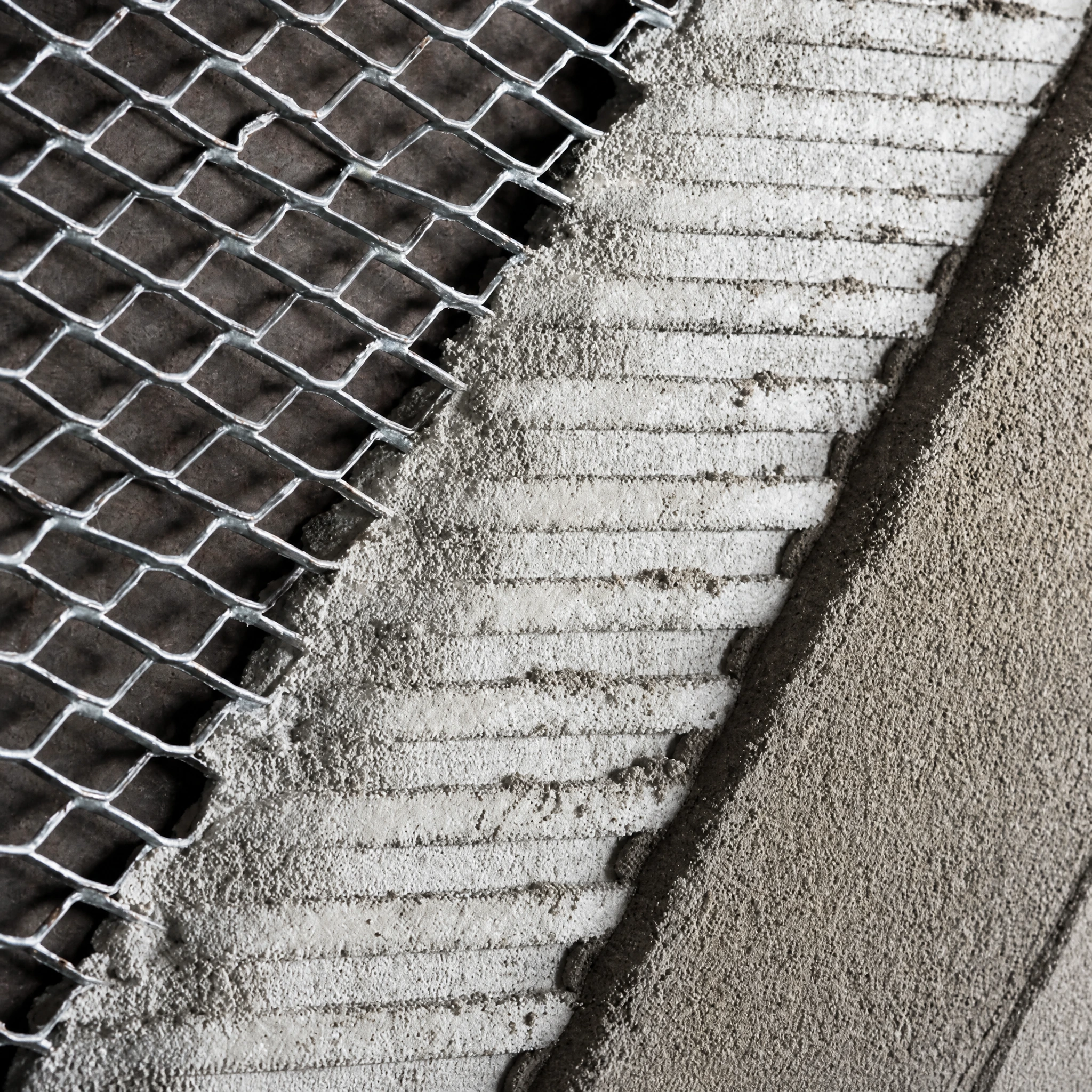

Where Diamond Metal Lath Is Used
Diamond Mesh Lath can be used as a reinforcement base for a range of interior and exterior finishing systems.
Diamond Metal Lath Specifications
Source Diamond Mesh Lath Direct from the Factory
Get product specifications, pricing and export information directly from AlliedMesh.
From Production to Shipment
Every order goes through a controlled process from production to final loading. We focus on product quality, careful handling and secure packaging at every stage.
Manufacturing
Metal mesh and building products are manufactured using our production equipment and established manufacturing processes.
Quality Inspection
Finished products are checked for dimensions, mesh pattern, surface condition and overall product quality before packing.
Professional Packing
Products are carefully packed and protected according to the product type and shipping requirements.
Container Loading
Packed orders are carefully loaded into containers and prepared for safe international transportation.
Flat Diamond Metal Lath FAQ
Quick answers for importers, distributors and contractors.
What is flat diamond metal lath used for?
Flat diamond metal lath is used as a plaster and stucco base on walls and ceilings, for reinforcing corners and joints, and as a key for cement render over wood or steel framing.
What weights and sheet sizes are available?
Common weights are 2.5 lb/yd² and 3.4 lb/yd² (approx. 1.36 and 1.84 kg/m²). The standard sheet is 27" × 96" (686 × 2438 mm); other sizes can be produced on request.
Is it galvanized or painted?
Flat diamond lath is available galvanized for exterior stucco and painted (black asphalt) for interior plastering.
How is metal lath packed?
Sheets are bundled, usually 10 sheets per bundle, then stacked on steel pallets with labels and pallet quantities arranged to your requirements.
Often Ordered Together
Combine products in one container to save on freight.
Self-Furring Dimple Lath
Self-Furring V-Groove Lath
Paper-Backed Lath
Stucco AccessoriesNeed Flat Diamond Metal Lath for Your Project?
Send us the size, quantity and destination port. We usually reply within 1 hour with price, lead time and packing details.
