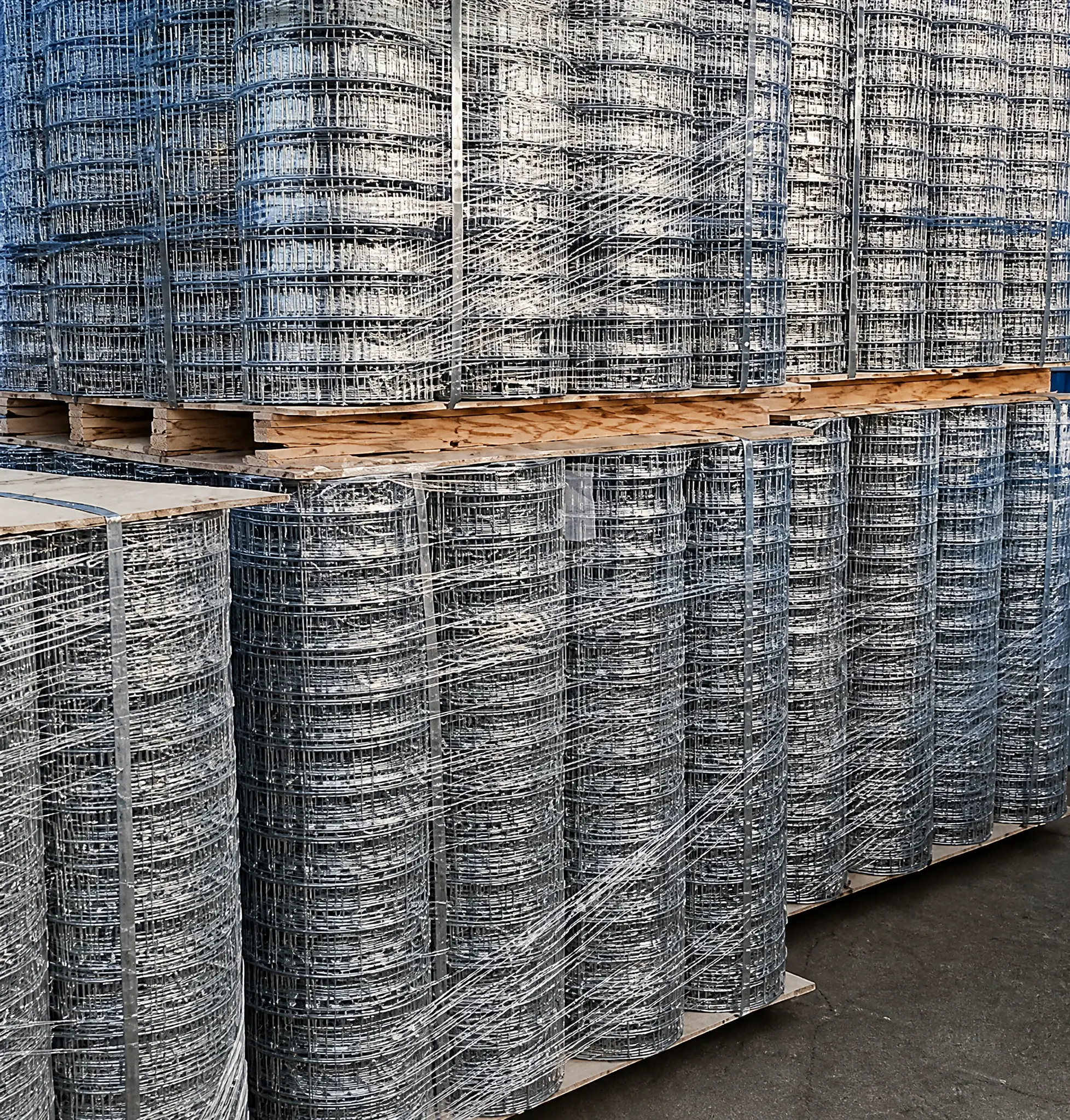

Stucco Wire Mesh Roll / Welded Wire Mesh
Product Overview
Stucco Wire Mesh Roll, also known as Welded Wire Mesh, is a galvanized welded-wire reinforcement used as a base for exterior stucco and Portland cement-based plaster systems.
Manufactured from cold-drawn, low-carbon steel wire, the wires are resistance-welded at the intersections to form a stable square mesh. Galvanized coating helps provide corrosion resistance.
The self-furring design creates space between the wire and substrate, helping provide mechanical keying for the stucco layer.
Main Product Specifications
Welded Stucco Wire Mesh is manufactured from galvanized low-carbon steel wire and is designed for exterior stucco and plaster applications.
| Specification | Details |
|---|---|
| Product Type | Stucco Wire Mesh Roll / Welded Wire Mesh |
| Mesh Opening | 1-1/2" × 1-1/2" |
| Wire Gauge | 17 Gauge |
| Material | Low-Carbon Cold-Drawn Steel Wire |
| Surface | Class 1 Hot-Dip Galvanized |
| Furring | 1/4" Self-Furring Crimps |
| Furring Spacing | 3" O.C. |
| Roll Width | 48" / 54" |
| Roll Length | 112.5 ft / 100 ft |
| Coverage | Approx. 450 sq. ft. / 50 sq. yd. |
| Wire Standard | ASTM A641 |
| Structure | Resistance-Welded |
| Application | Exterior Stucco / Plaster Systems |
Available Sizes
17 Gauge
| Mesh | 1-1/2" × 1-1/2" |
| Width | 48" / 54" |
| Length | 112.5 ft / 100 ft |
| Weight | Approx. 57 lb/roll |
16 Gauge
| Mesh | 2" × 2" |
| Width | 48" / 54" |
| Length | 112.5 ft / 100 ft |
| Weight | Approx. 54 lb/roll |
Material & Welded Structure
Hot-Dip Galvanized Steel Wire
The welded wire lath is manufactured from low-carbon, cold-drawn steel wire with a Class 1 galvanized coating.
The wire complies with the mechanical requirements of ASTM A641, while the galvanized coating provides corrosion resistance for stucco and exterior plaster applications.
Resistance-Welded Joints
Longitudinal and cross wires are resistance-welded at their intersections, creating a consistent square mesh structure and helping maintain stable mesh geometry during handling and installation.
Applications
Stucco Wire Mesh is designed for reinforcement and mechanical support in a wide range of exterior stucco and plaster applications.
Installation Information
For 17 Gauge 1-1/2" × 1-1/2" welded stucco wire, installation should follow the applicable project requirements and building codes.
- May be applied to vertical wood or metal framing.
- Fasteners should attach the lath at furring crimps or wire intersections.
- Side laps: minimum one mesh.
- End laps: minimum one mesh and located over supports.
- Installation should follow the applicable requirements of ASTM C1063 and applicable building codes.
Frequently Asked Questions
Custom Stucco Wire Mesh Roll
We can supply welded stucco wire mesh according to project requirements, including customized mesh openings, wire gauges, roll widths, roll lengths, furring configurations and packaging.
