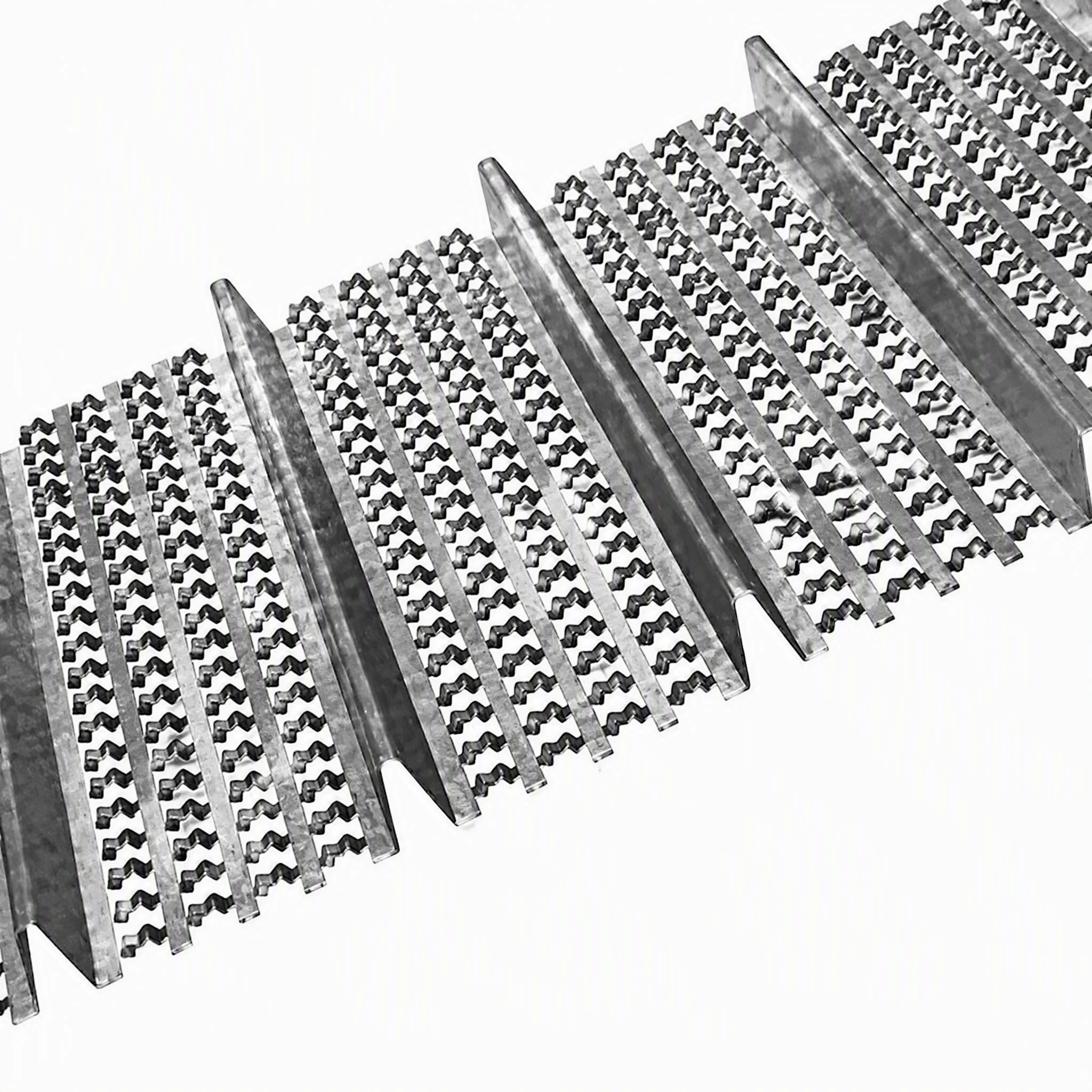

High Rib Mesh – Permanent Formwork for Construction Joints
AlliedMesh supplies high rib mesh, a 445 mm wide ribbed expanded metal strip used as permanent formwork at construction joints. Choose galvanized steel (G60, G90 or standard hot-dip) or 304 stainless steel, in lengths of 2000, 2200 or 3000 mm. Orders start from 1 piece, and samples are available.
- 445 mm Standard strip width
- 0.15–0.45 mm Thickness, galvanized or 304 stainless
- 5–10 mm Rib height
- From 1 piece Minimum order, samples available
Choose Your High Rib Mesh
Galvanized or 304 stainless steel in standard strips, or made to your own size.
Standard
Galvanized High Rib Mesh
- 445 mm wide, 2000 / 2200 / 3000 mm long
- Thickness 0.15–0.45 mm
- G60, G90 or standard hot-dip galvanized
- Silver finish
Stainless
304 Stainless High Rib Mesh
- 304 stainless steel
- 445 mm wide, 2000 / 2200 / 3000 mm long
- Thickness 0.15–0.45 mm
- Rib height 5–10 mm
Made to order
Custom High Rib Mesh
- Length and width to order
- Rib height to order
- Thickness to order
- Galvanized or 304 stainless steel
How High Rib Mesh Works
1. Fix it to the reinforcement
Fix the mesh to the reinforcement or supporting structure at the end of the pour, so the assembly is stiff enough to take the pressure of the concrete.
2. Pour the concrete
Wet concrete passes through the open mesh and sets into it, forming a keyed face for the next pour. The open pattern also lets you see the concrete as it is placed.
3. Leave it in place
The mesh stays in the structure. There is no formwork to strip and no joint face to scabble.
Where to Use High Rib Mesh
Construction Joints
A keyed joint between one pour and the next in walls, beams, columns and slabs.
Stop Ends
A permanent stop end at the end of a pour, in place of a conventional stop-end board.
Hidden Formwork Faces
Wall, beam and column faces that will not be seen, where formwork would otherwise have to be stripped.
Slab Soffits
Slab undersides where the finished face is concealed.
Always follow your project's formwork design for support spacing and pour rate. Send us your conditions and we will help you confirm the thickness and size.
High Rib Mesh Specifications
| Specification | High Rib Mesh |
|---|---|
| Material | Galvanized steel / 304 stainless steel |
| Product Type | High rib mesh, ribbed expanded metal |
| Standard Size | 445 mm wide × 2000 / 2200 / 3000 mm long |
| Thickness | 0.15 / 0.30 / 0.35 / 0.40 / 0.45 mm |
| Rib Height | 5–10 mm |
| Rib Profile | Same as our rib lath |
| Zinc Coating | G60 / G90 / standard hot-dip galvanized / customer-specified |
| Color | Silver |
| Pallet Packing | 250 / 500 / 1000 pcs per pallet, or as required |
| Custom Specifications | Size, rib height, thickness, coating and packing made to order |
| Minimum Order | From 1 piece |
| Samples | Available |
High Rib Mesh vs Rib Lath
| High Rib Mesh | Rib Lath | |
|---|---|---|
| Rib Profile | Ribbed expanded metal | Same ribbed expanded metal profile |
| Rib Height | 5–10 mm | 3/8" (approx. 9.5 mm), 3/4" (19–20 mm), custom 5–20 mm |
| Width | 445 mm | 27" (approx. 686 mm); 3/4" also in 200–700 mm widths |
| Length | 2000 / 2200 / 3000 mm | 97" (approx. 2464 mm); custom 2.0–2.5 m |
| Thickness | 0.15–0.45 mm | 3/8": 0.17–0.45 mm; custom 0.15–0.6 mm |
| Material | Galvanized steel / 304 stainless steel | Galvanized steel / 304 stainless steel |
| Main Use | Permanent formwork at construction joints | Plaster and stucco base; 3/4" also permanent formwork |
| Pallet Packing | 250 / 500 / 1000 pcs | 3/4": 250 / 300 / 400 pcs |
| Minimum Order | From 1 piece | From 1 piece |
Supplier names vary. On this site, High Rib Mesh is our 445 mm wide formwork mesh with 5–10 mm ribs. 3/4" High Rib Lath is our rib lath with 19–20 mm ribs, listed on the rib lath page.
Custom High Rib Mesh
If the standard strips do not fit your project, we can make high rib mesh to your length, width, rib height and thickness. Custom orders also start from 1 piece, and samples are available before you commit.
| Parameter | Standard / Custom |
|---|---|
| Length | Standard 2000 / 2200 / 3000 mm; other lengths to order |
| Width | Standard 445 mm; other widths to order |
| Rib Height | Standard 5–10 mm; other heights to order |
| Thickness | Standard 0.15–0.45 mm; other thicknesses to order |
| Material | Galvanized steel / 304 stainless steel |
| Zinc Coating | G60 / G90 / standard hot-dip galvanized / customer-specified |
| Pallet Packing | 250 / 500 / 1000 pcs per pallet, or as required |
| Minimum Order | From 1 piece |
| Samples | Available |
What to Include in Your Inquiry
- Galvanized or 304 stainless steel
- Strip length and width
- Rib height and thickness
- Zinc coating requirement, if galvanized
- Quantity and destination port
- Pallet packing requirement (pcs per pallet)
- Drawing or reference sample, if you have one
How Custom Orders Work
- Send your specification. Share a drawing, sample photo or the parameters above.
- Confirm details. We check the specification with you and can make a sample.
- Receive your quotation. Price and delivery based on your quantity and destination.
- Production and export packing. Packed on pallets for shipment.
Why Source High Rib Mesh from AlliedMesh
Factory-Backed Supply
Our high rib mesh is produced by our own manufacturing factory in China, so specifications and quality can be controlled at the source. See factory details.
Small Orders and Samples
Standard and custom high rib mesh both start from 1 piece, and samples are available, so you can check the mesh before placing a larger order.
One Supplier, Mixed Orders
Combine high rib mesh with rib lath, metal lath and stucco accessories from the same supplier.
High Rib Mesh FAQ
What is high rib mesh used for?
High rib mesh is ribbed expanded metal used as permanent formwork, mainly at construction joints and stop ends. It stays in the concrete after the pour, so there is no formwork to strip.
How does it work at a construction joint?
Wet concrete passes through the open mesh and sets into it, leaving a keyed face for the next pour. Because the mesh stays in place, there is no stop-end board to remove and no joint face to scabble.
What is the difference between high rib mesh and rib lath?
They use the same ribbed expanded metal profile. High rib mesh is our 445 mm wide strip with 5–10 mm ribs, supplied as permanent formwork for construction joints. Rib lath is supplied in wider sheets and is mainly a base for plaster and stucco. See our rib lath.
Is "high rib" the same on the rib lath page?
Not always. Supplier names vary. Here, high rib mesh means our 445 mm wide formwork mesh with 5–10 mm ribs. 3/4" High Rib Lath is a rib lath with 19–20 mm ribs and is listed on the rib lath page.
Galvanized or 304 stainless steel: which should I choose?
Galvanized steel suits most dry or normal conditions. If the mesh will stay in damp or corrosive conditions, 304 stainless steel resists rust better. Tell us the conditions and we will recommend one.
What sizes and thicknesses are available?
The standard strip is 445 mm wide in lengths of 2000, 2200 and 3000 mm, with thicknesses of 0.15, 0.30, 0.35, 0.40 and 0.45 mm. Rib height is 5–10 mm. Other sizes can be made to order.
What zinc coating options are there?
Galvanized high rib mesh is available with G60 or G90 zinc coating, standard hot-dip galvanizing, or a coating you specify. Tell us the coating you need when you request a quote.
What can be customized?
Length, width, rib height, thickness, material (galvanized or 304 stainless steel), zinc coating and pallet packing. Send your specification with your quote request.
How do I choose the thickness and support spacing?
That depends on your formwork design, the pour height and the pour rate, so follow your project's formwork design. Send us your conditions and we will help you confirm the thickness and size.
What is the minimum order and how is it packed?
The minimum order is 1 piece for both standard and custom high rib mesh. Standard packing is 250, 500 or 1000 pieces per pallet, or as you require. Send us your quantity and destination port for pricing.
Can I get a sample first?
Yes, samples are available. Tell us the material, size and rib height you want to check.
Can you provide test reports or documentation?
Tell us which documentation your project requires, and we will confirm what we can provide for your order.
Request a High Rib Mesh Quote
Send us the material, size, quantity and destination port. Orders start from 1 piece, and samples are available.
