Self-Furring V-Groove Lath
1/4" Self-Furring V-Groove Expanded Metal Lath for Stucco & Plaster

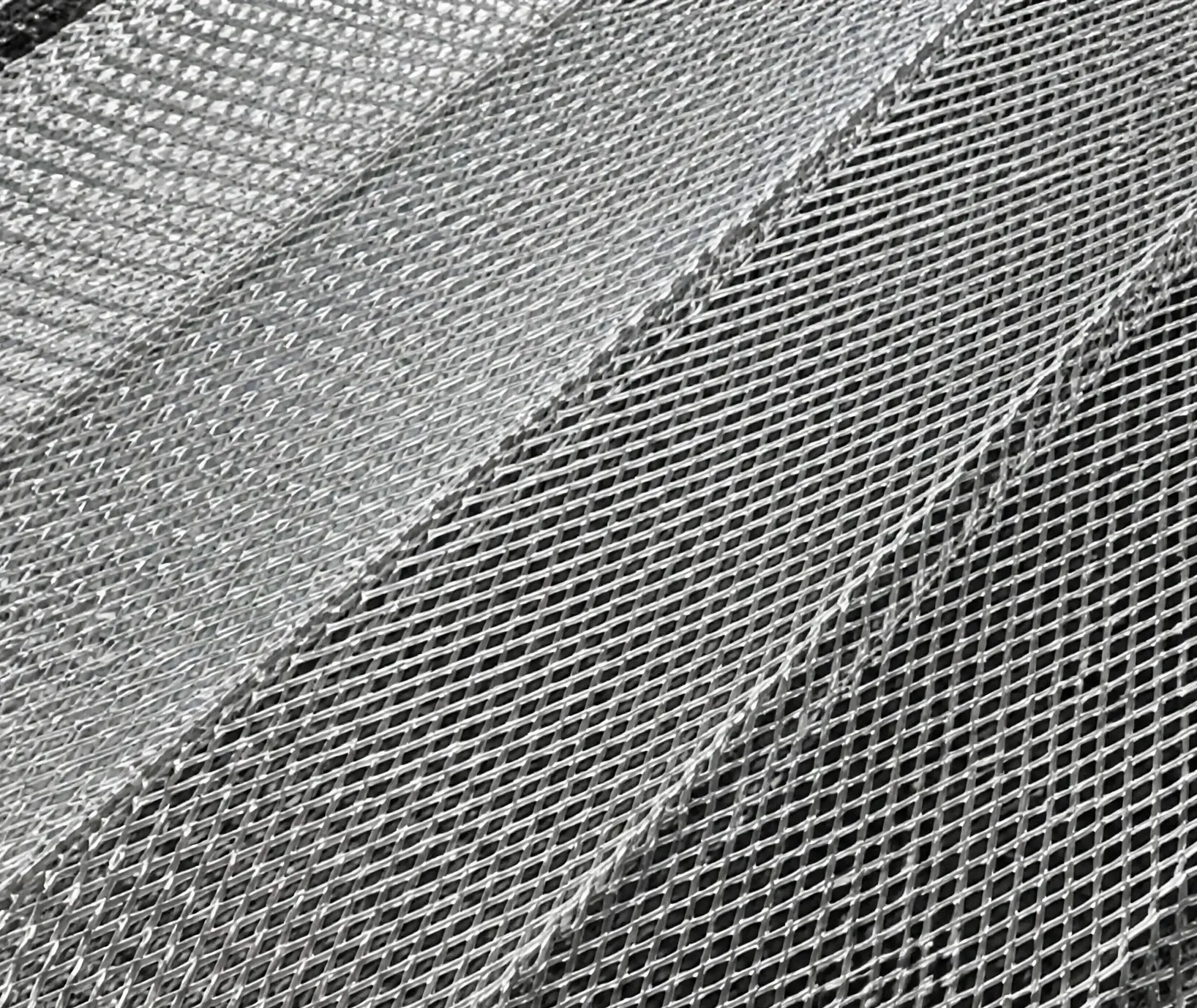

AlliedMesh Self-Furring V-Groove Lath is produced from galvanized steel and formed into an expanded metal sheet with raised V-shaped ribs along its length. The structured profile creates a consistent furring space between the lath and the supporting surface, providing a practical base for stucco, plaster and other cement-based finishing systems.
The V-groove design combines an open expanded metal surface with defined raised ribs, helping finishing materials engage with the lath while providing convenient areas for fastening. AlliedMesh supplies this product in 2.5 lb. and 3.4 lb. options for distributors, contractors and building-material suppliers.
Factory Direct
Produced and inspected through our own manufacturing operation in China for direct export supply.
1/4" Self-Furring
The raised profile keeps the expanded metal lath spaced away from the supporting surface.
V-Groove Structure
Five longitudinal V-shaped ribs add profile definition and provide practical fastening areas.
Two Weight Options
Available in 2.5 lb. and 3.4 lb. options to suit different finishing and project requirements.
Built for Stucco, Plaster & Veneer Systems
Self-Furring V-Groove Lath provides a formed metal base for finishing work where a consistent furring profile and open mesh surface are required.
Self-Furring V-Groove Lath Specifications
Source Self-Furring V-Groove Lath Direct from the Factory
Get product specifications, pricing and export information directly from AlliedMesh.
From Production to Shipment
Every order goes through a controlled process from production to final loading. We focus on product quality, careful handling and secure packaging at every stage.
Manufacturing
Metal mesh and building products are manufactured using our production equipment and established manufacturing processes.
Quality Inspection
Finished products are checked for dimensions, mesh pattern, surface condition and overall product quality before packing.
Professional Packing
Products are carefully packed and protected according to the product type and shipping requirements.
Container Loading
Packed orders are carefully loaded into containers and prepared for safe international transportation.
Self-Furring V-Groove Lath FAQ
Quick answers for importers, distributors and contractors.
How is V-groove lath different from dimple lath?
V-groove lath has continuous V-shaped grooves pressed along the sheet instead of dimples. The grooves stiffen the sheet and provide the furring space, making it easier to keep flat during installation.
What sizes and weights are available?
The standard sheet is 27" × 96" in 2.5 lb/yd² and 3.4 lb/yd², galvanized. Custom sizes can be made for OEM orders.
What applications is it suited to?
V-groove lath is used for exterior stucco and interior plaster over sheathing, masonry and concrete, and as a base for adhered stone and tile.
How is it packed?
Sheets are bundled (typically 10 per bundle) and stacked on steel pallets with your labels and pallet quantities.
Often Ordered Together
Combine products in one container to save on freight.
Self-Furring Dimple Lath
Flat Diamond Metal Lath
Paper-Backed Lath
Rib LathNeed Self-Furring V-Groove Lath for Your Project?
Send us the size, quantity and destination port. We usually reply within 1 hour with price, lead time and packing details.
