Stainless Wire Mesh

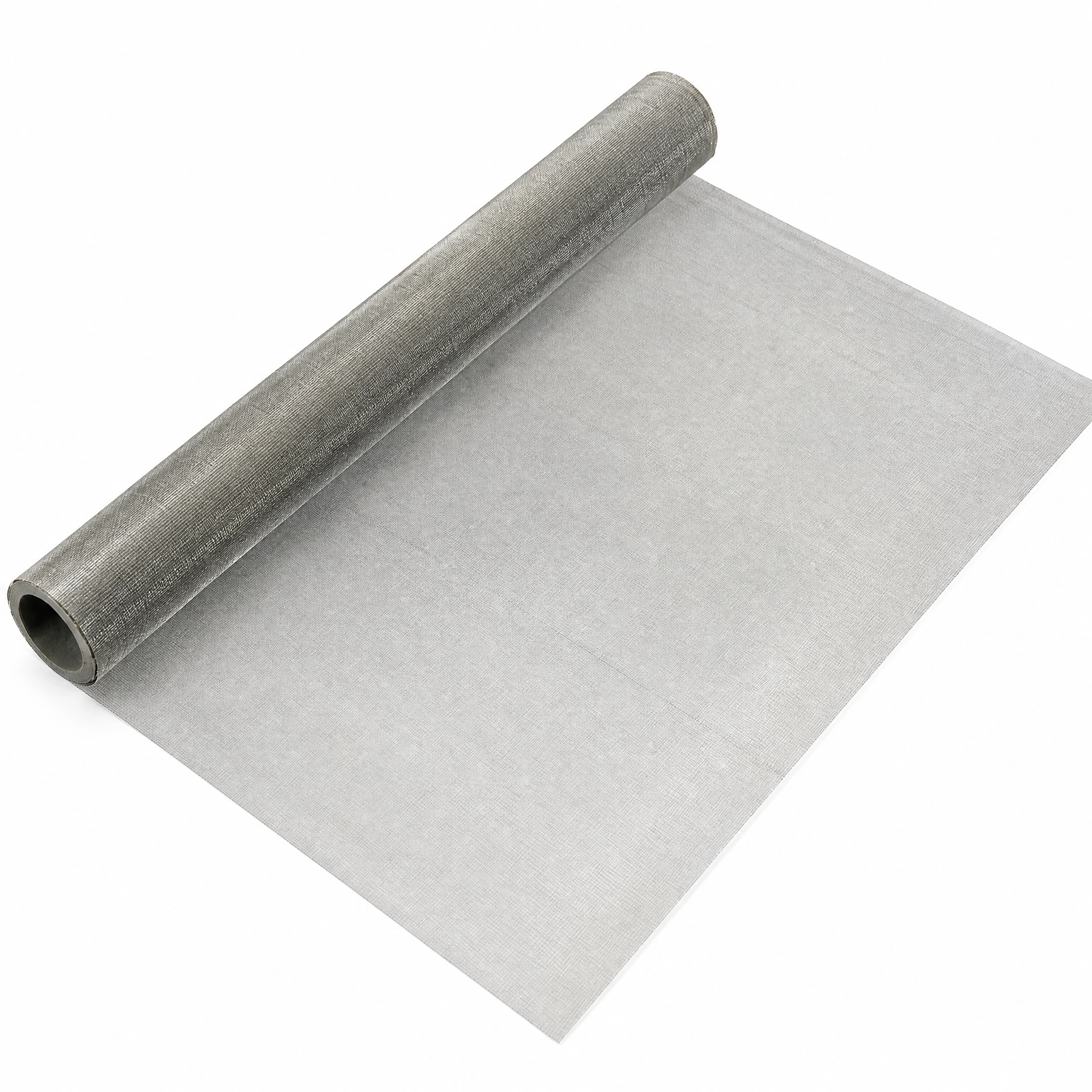

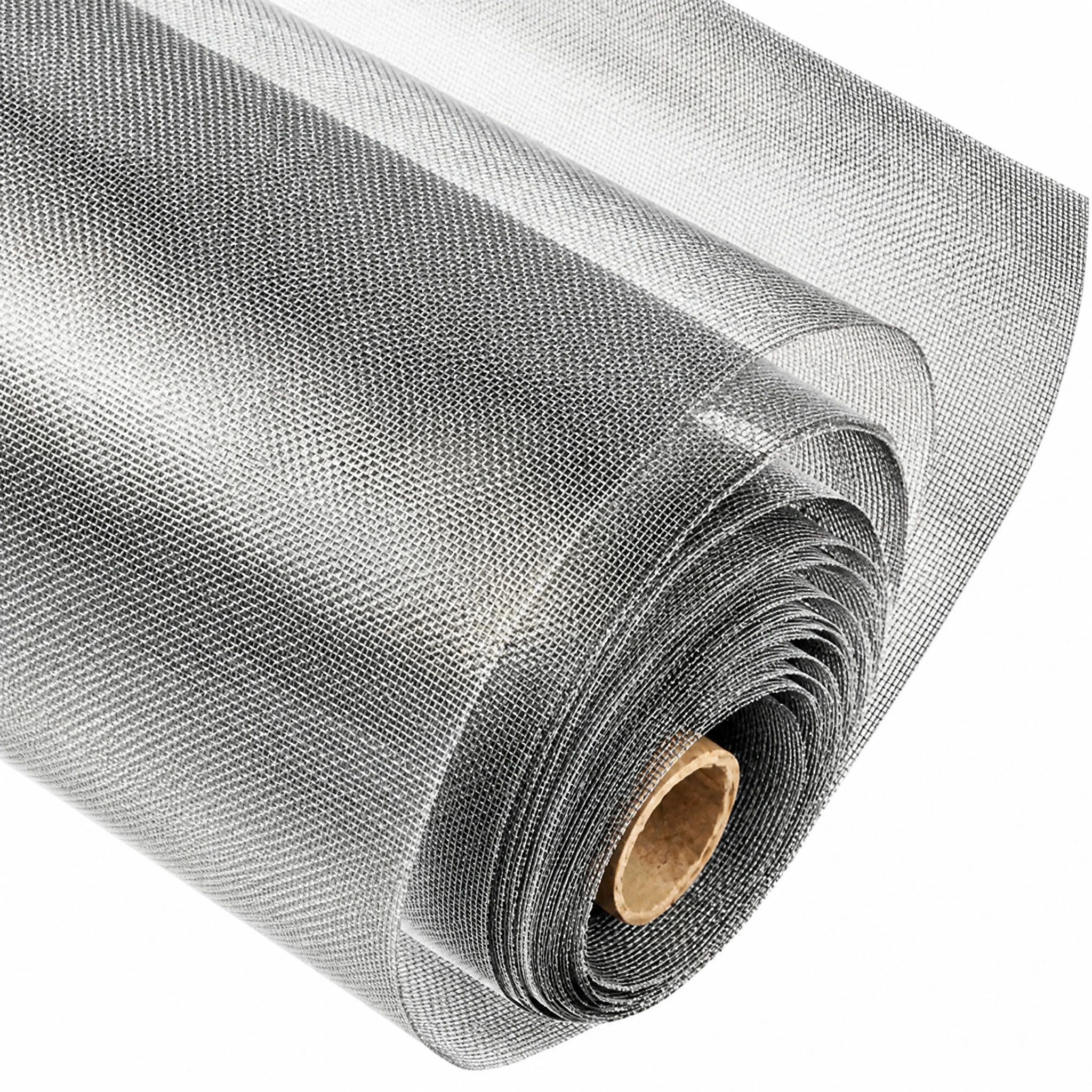

Stainless Steel Filter Mesh is a precision woven wire mesh designed for filtration, screening, separation, and sieving applications. Manufactured from high-quality stainless steel wire, it offers excellent corrosion resistance, consistent mesh openings, and reliable mechanical strength for industrial filtration systems

Key Features

Stainless steel construction provides strong resistance to rust, moisture, chemicals, and harsh operating environments
Uniform mesh openings provide consistent particle retention and reliable filtration accuracy
High-quality stainless steel wire provides excellent tensile strength, wear resistance, and dimensional stability
Available in different mesh counts, wire diameters, widths, lengths, and weaving patterns to meet various filtration requirements
Suitable for liquid and gas filtration, screening, sieving, separation, and processing applications across multiple industries

REQUEST A QUOTE →

Product Description

Stainless Steel Filter Mesh is manufactured by weaving stainless steel wires into a uniform and precisely controlled mesh structure. It is widely used for liquid and gas filtration, particle separation, screening, sieving, and other industrial applications where reliable filtration performance and long-term durability are required. Common stainless steel grades include 304, 304L, 316, and 316L, allowing the mesh to meet different requirements for corrosion resistance, chemical compatibility, and operating environments. The mesh can be supplied in different mesh counts, wire diameters, roll widths, and roll lengths to meet specific filtration requirements. Plain weave is commonly used for general filtration, while twill weave and other weaving patterns can provide finer filtration and improved structural stability. Stainless steel filter mesh is suitable for applications in chemical processing, food processing, pharmaceutical production, petroleum, mining, water treatment, plastics, and industrial filtration equipment.

Stainless Steel Woven Wire Mesh Specification

Micron	Mesh	SWG	Aperture (mm)	Wire (mm)	Width (mm)	Grade	Weave	Open
26	500	50	0.026	0.025	1220	316	TW	26
34	400	49	0.034	0.03	1220	316	TW	28
43	325	48.5	0.043	0.035	1220	316	TW	30
45	300	48	0.045	0.04	1220	316	TW	28
62	250	48	0.062	0.04	1220	316	TW	37
77	200	47	0.077	0.05	1220	316	PW	37
91	180	47	0.091	0.05	1220	316	PW	42
104	150	45.5	0.104	0.065	1220	316	PW	38
132	120	44	0.132	0.08	1550	316	PW	39
154	100	42	0.154	0.1	1245	316	PW	37
154	100	42	0.154	0.1	1550	316	PW	37
193	80	39	0.193	0.125	1245	316	PW	37
193	80	39	0.193	0.125	1550	316	PW	37
223	70	38	0.223	0.014	1550	316	PW	38
250	60	37	0.25	0.174	1245	316	PW	34
250	60	37	0.25	0.174	1550	316	PW	34
318	50	36.5	0.318	0.19	1245	316	PW	39
318	50	36.5	0.318	0.19	1550	316	PW	39
415	40	34	0.415	0.22	1550	316	PW	43
547	30	30	0.547	0.3	1245	304	PW	42

＋ View More Specifications

547	30	30	0.547	0.3	1245	316	PW	42
547	30	30	0.547	0.3	1550	304	PW	42
567	30	32	0.567	0.28	1245	304	PW	45
608	24	26	0.608	0.45	1550	304	PW	35
650	24	26	0.65	0.19	1550	304	PW	60
710	20	24	0.71	0.56	1550	304	PW	31
758	24	30	0.758	0.3	1245	304	PW	51
820	20	26	0.82	0.45	1245	304	PW	42
820	20	26	0.82	0.45	1550	304	PW	42
920	20	28	0.92	0.35	1245	304	PW	52
1030	16	24	1.03	0.56	1245	304	PW	42
1140	16	26	1.14	0.45	1245	304	PW	51
1240	26	28	1.24	0.35	1245	304	PW	61
1250	14	24	1.25	0.56	1245	304	PW	48
1410	12	22	1.41	0.71	1245	304	PW	44
1560	12	24	1.56	0.56	1245	316	PW	54
1580	8	16	1.58	1.6	1245	316	PW	25
1640	10	20	1.64	0.9	1245	304	PW	42
1670	12	26	1.67	0.45	1245	304	PW	62
1920	9	20	1.92	0.9	1550	304	PW	46
1980	8	18	1.98	1.2	1245	304	PW	39
2090	10	26	2.09	0.45	1245	304	PW	68
2280	8	20	2.28	0.9	1245	304	PW	51
2470	8	22	2.47	0.71	1245	304	PW	60
2630	6	16	2.63	1.6	1245	316	PW	39
3030	6	18	3.03	1.2	1245	304	PW	51
3330	6	20	3.33	0.9	1245	304	PW	62
3480	5	16	3.48	1.6	1245	304	PW	47
3880	5	18	3.88	1.2	1550	304	PW	58
4180	5	20	4.18	0.9	1550	304	PW	68
